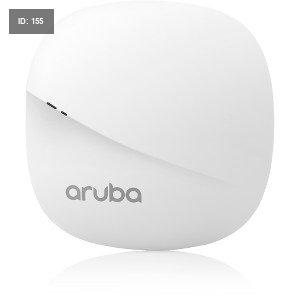

AP-303: Internal antenna models.

Wi-Fi Radio Specifications

AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and 2.4GHz 802.11n 2x2 MIMO

5GHz (radio 0):

Two spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate to individual 2SS VHT80 client devices

Two spatial stream Multi User (MU) MIMO for up to 867 Mbps wireless data rate to two 1SS MU-MIMO capable client devices simultaneously

2.4GHz (radio 1):

Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2SS HT40 client devices

Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply):

2.400 to 2.4835GHz

5.150 to 5.250GHz

5.250 to 5.350GHz

5.470 to 5.725GHz

5.725 to 5.850GHz

Available channels: Dependent on configured regulatory domain

Dynamic frequency selection (DFS) optimizes the use of available RF spectrum

Supported radio technologies:

802.11b: Direct-sequence spread-spectrum (DSSS)

802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

Supported modulation types:

802.11b: BPSK, QPSK, CCK

802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Transmit power: Configurable in increments of 0.5dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

2.4GHz band: +21dBm (18dBm per chain)

5GHz band: +21dBm (18dBm per chain)

Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain

Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks

Maximum ratio combining (MRC) for improved receiver performance

Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

Short guard interval for 20MHz, 40MHz and 80MHz channels

Space-time block coding (STBC) for increased range and improved reception

Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

Transmit beam-forming (TxBF) for increased signal reliability and range

Supported data rates (Mbps):

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n: 6.5 to 300 (MCS0 to MCS15)

802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)

802.11n high-throughput (HT) support: HT20/40

802.11ac very high throughput (VHT) support: VHT20/40/80

802.11n/ac packet aggregation: A-MPDU, A-MSDU

Wi-Fi Antennas

AP-303: Internal antenna models.

Two vertically polarized dual-band downtilt omnidirectional antennas for 2x2 MIMO with peak antenna gain of 3.5dBi (2.4GHz) and 6.9dBi (5GHz) per antenna.

The antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

Combining the patterns of both antennas per radio, the peak gain of the average (effective) pattern is 2.1dBi in 2.4GHz and 5.7dBi in 5GHz.

Mounting

The AP ships with a (black) mount clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling

Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information section below for details
